Basic Industrial Controls….

Basindctl03ECI’s Basic Industrial Controls is designed to teach the principles, operation, and applications of industrial electronic control circuits. These turnkey systems include excellent courseware, training panel, and all the component modules and accessories needed for the instructional program. ECI’s competency-based courseware is presented in an easy-to-read, two-color format that includes professional illustrations, charts, tables, and photos. Basindctl01

The comprehensive instructor’s guide offers tips and resources as well as answers to the questions and design challenges.





Basic Industrial Controls

– Electrical Safety
– System Familiarization
– Basic Logic Functions
– Electromechanical and Solid-State Relays
– Mechanical and Solid-State Switches
– Basic Control Circuits
– Transformers
– Contactors and Motor Starters
– Hard-wired Motor Control Circuits
– Troubleshooting Systems

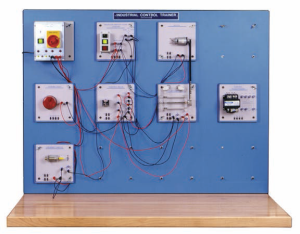

Basindctl04

Basic Industrial Controls

– 24V AC/DC Power Supply
– Start/Stop Pushbutton Station
– Three-Unit Pushbutton Station
– Selector Switch/Light Station
– Limit Switch
– Proximity Switch
– Strobe Light
– DC Motor
– Control Relay
– Solid-State Relay
– Contactor
– Overload Relay
– Control Transformer
